Gallery - Our Work

Below is a small sample of some of the work we have done for various customers. You will see that we have built a variety of brackets, enclosures, weldments, funnels, housings and covers. These parts were all made from a variety of materials such as stainless steel, cold rolled steel, aluminum and copper. We are willing to work with a variety of materials, and as you can see below, we are also able to finish parts to almost any specification. Please keep in mind that this is just a small sample of our past work, and that we would be more than happy to take a look any project you might have, big or small.

Fabricated Parts

LED Control box cover Engineering, Turret Punching, Laser cutting, CNC forming, Luvers and half sheer, Custom hinge, Extruded holes, Tapping, Spot welding, Powder coat paint with cutom masking, Hardware insertion, Material: Aluminum	LED Control box cover Engineering, Turret Punching, Laser cutting, CNC forming, Luvers and half sheer, Custom hinge, Extruded holes, Tapping, Spot welding, Powder coat paint with cutom masking, Hardware insertion, Material: Aluminum	Lamp cover Engineering, Laser cutting, Punching, CNC forming, Welding, Powder coat painting, Material: Aluminum

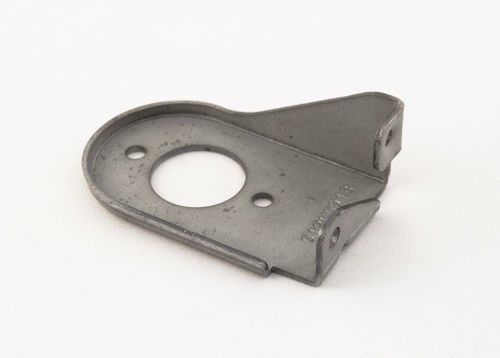

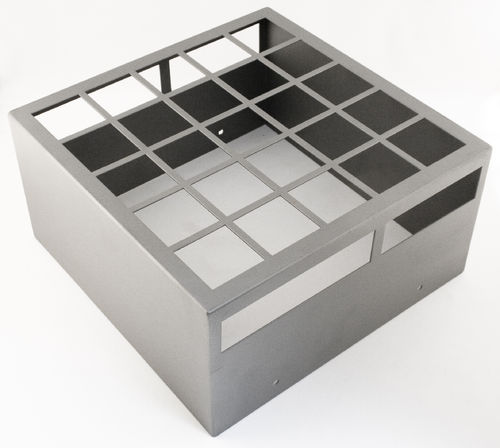

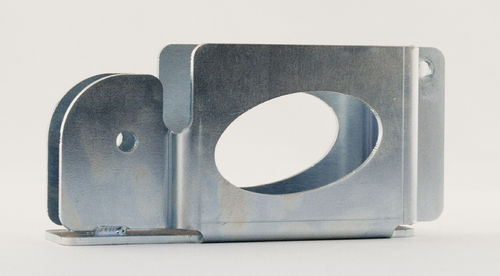

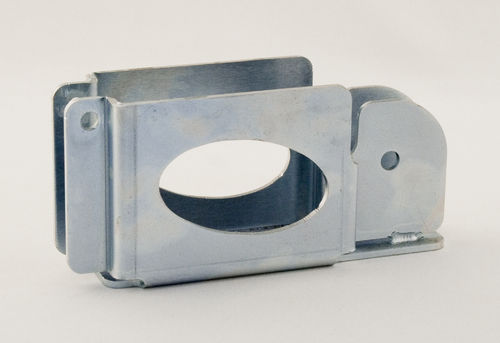

Lamp cover Engineering, Laser cutting, Punching, CNC forming, Welding, Powder coat painting, Material: Aluminum	Mounting bracket Engineering, Laser cutting, CNC Forming, Welding, Grinding, Zinc plating, Material: Cold rolled steel	Mounting bracket Engineering, Laser cutting, CNC Forming, Welding, Grinding, Zinc plating, Material: Cold rolled steel

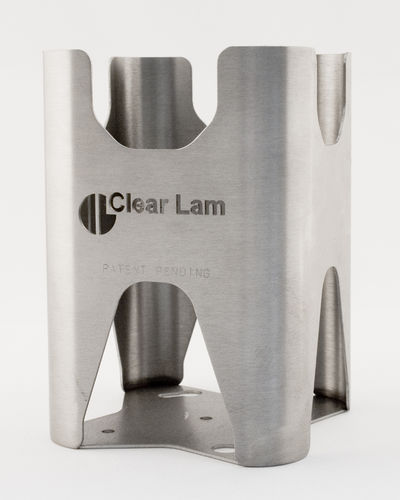

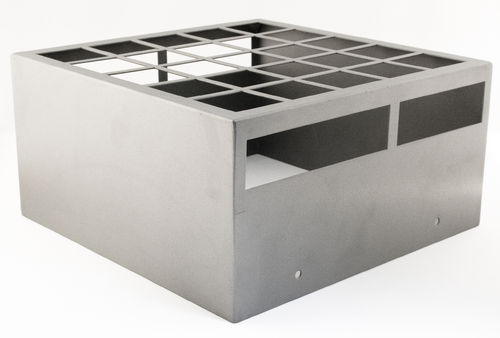

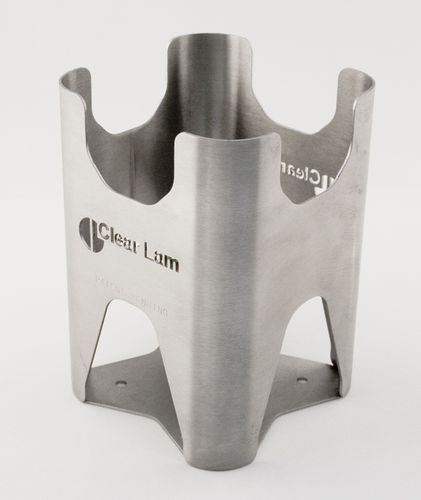

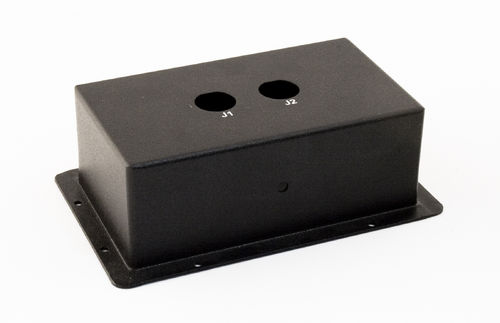

Product holder Engineering, Laser cutting, CNC Forming, Welding, Polished to #4 finish, Material: Stainless Steel	Product holder Engineering, Laser cutting, CNC Forming, Welding, Polished to #4 finish, Material: Stainless Steel	Control box Engineering, Laser cut, Turret punch, CNC forming, welding, grinding, powder coat paint, silk screening. Material: Cold rolled steel

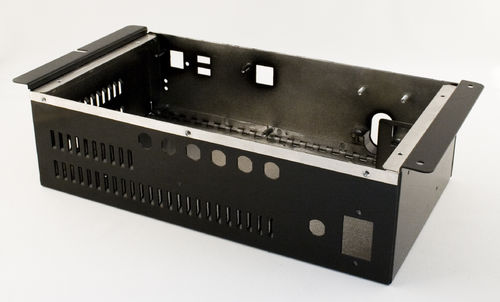

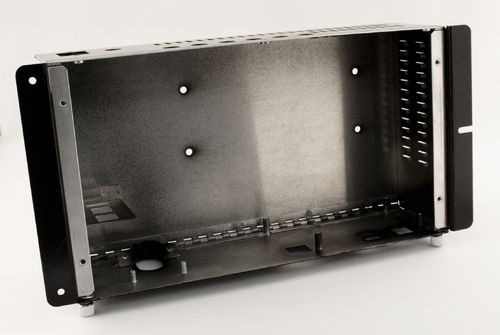

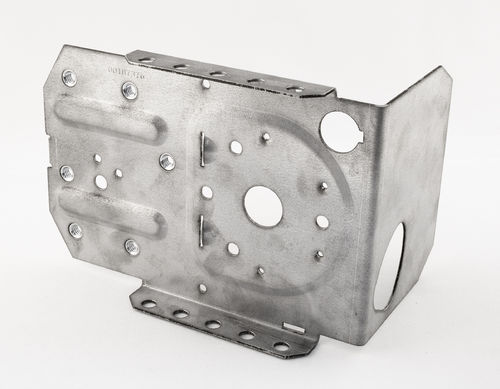

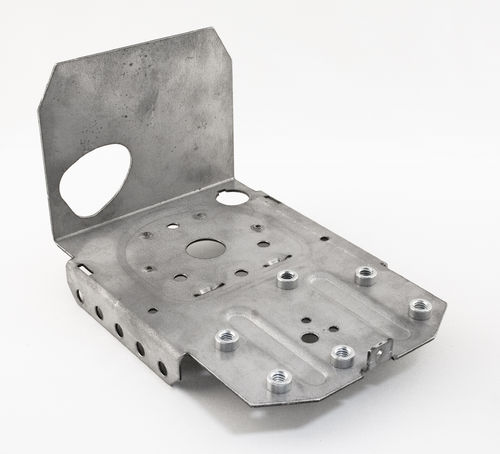

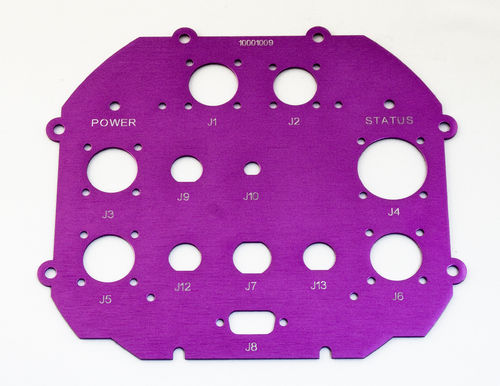

Control plate Engineering, Laser cutting, Polishing #4 finish, Anodizing, Laser etching, Material: Aluminum	Machine chasis Engineering, CNC punching, Laser cut, CNC forming, Custom embossing with soft tooling, Hardware insertion, Material: Galvannealed “Paintlok”	Machine chasis, Engineering, CNC punching, Laser cut, CNC forming, Custom embossing with soft tooling, Hardware insertion, Material: Galvannealed “Paintlok”

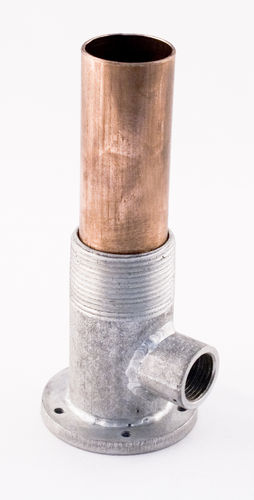

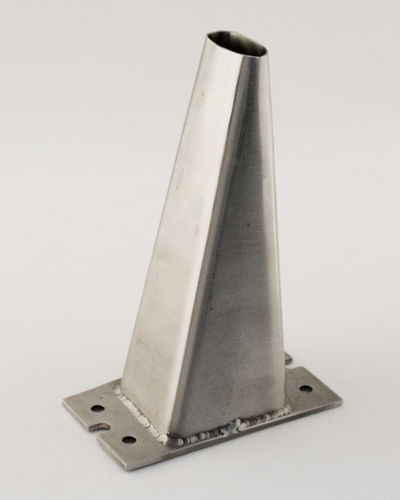

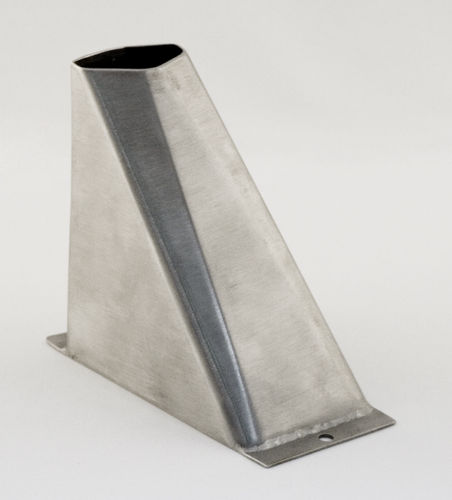

Tube pouch Engineering, Laser cutting, CNC forming, Sanitary welding, Polishing, mirror finish inside and outside, Material: Stainless steel	Tube pouch Engineering, Laser cutting, CNC forming, Sanitary welding, Polishing, mirror finish inside and outside, Material: Stainless steel	Fuel sensor pipe Engineering, Laser cutting, Machined per print, Drilling, Tapping, Welding, Plating, Copper pressed into threaded pipe per specification. Material: Copper tubing, Cold rolled steel threaded pipe

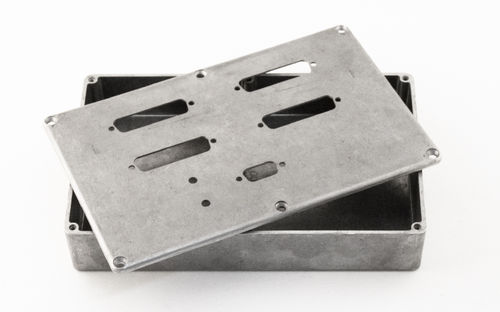

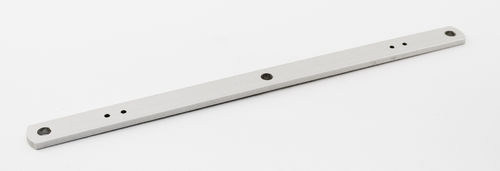

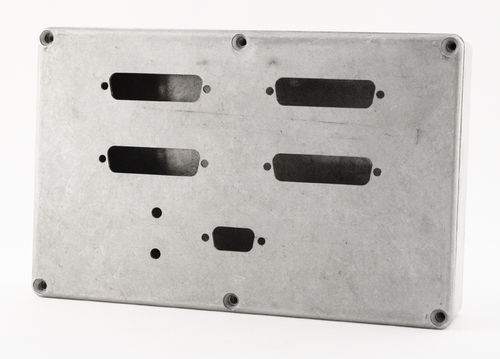

Member light lift Engineering, CNC punch press, Polishing, Hard coat anodizing, Material: Aluminum	Member light lift Engineering, CNC punch press, Polishing, Hard coat anodizing, Material: Aluminum	Modified Hammond enclosure Engineering, Laser cut per specification, Deburring, Machining, Hardware, Material: Aluminum casting

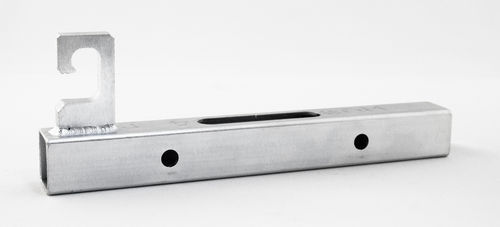

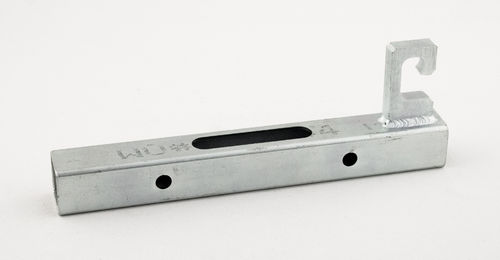

Modified Hammond enclosure Engineering, Laser cut per specification, Deburring, Machining, Hardware, Material: Aluminum casting	Steel tube hanger Engineering, Laser cutting, Welding, Zinc plating, Material: Cold rolled steel pipe	Steel tube hanger Engineering, Laser cutting, Welding, Zinc plating, Material: Cold rolled steel pipe

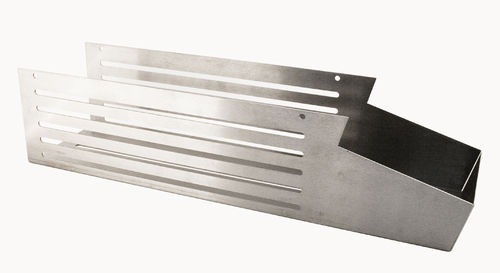

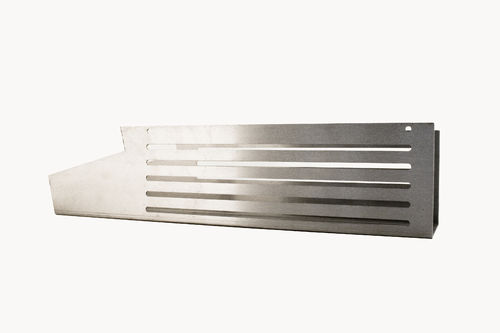

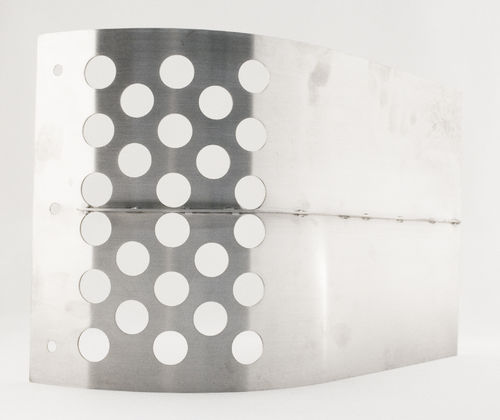

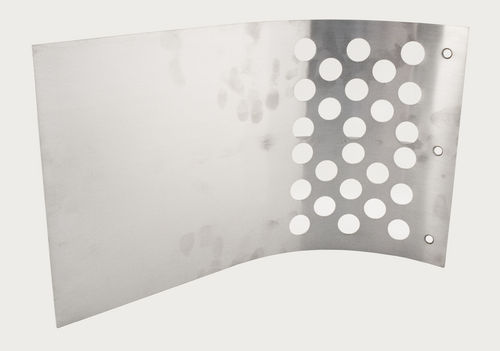

Gear box cover Engineering, Laser cutting, CNC forming, Welding, Grinding, Polish to #4 finish, Material: Stainless steel	Gear box cover Engineering, Laser cutting, CNC forming, Welding, Grinding, Polish to #4 finish, Material: Stainless steel	Outfeed ramp Engineering, Laser cutting, Roll forming, Welding, Polishing, Material: Stainless steel
Outfeed ramp Engineering, Laser cutting, Roll forming, Welding, Polishing, Material: Stainless steel	Custom bracket Engineering, Laser cutting, Custom forming with soft tooling, Stamping, Engraving, Deburring, Extruded holes. Material: Galvanized steel

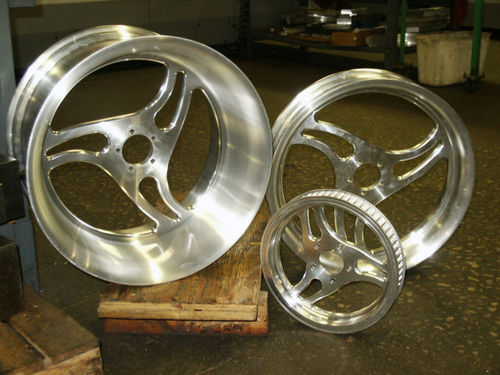

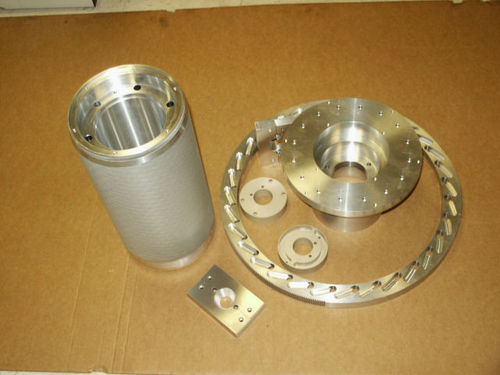

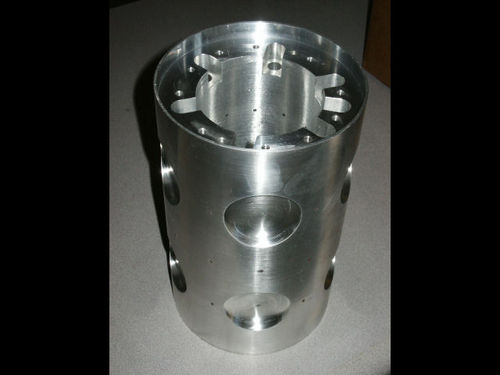

Machined Parts
